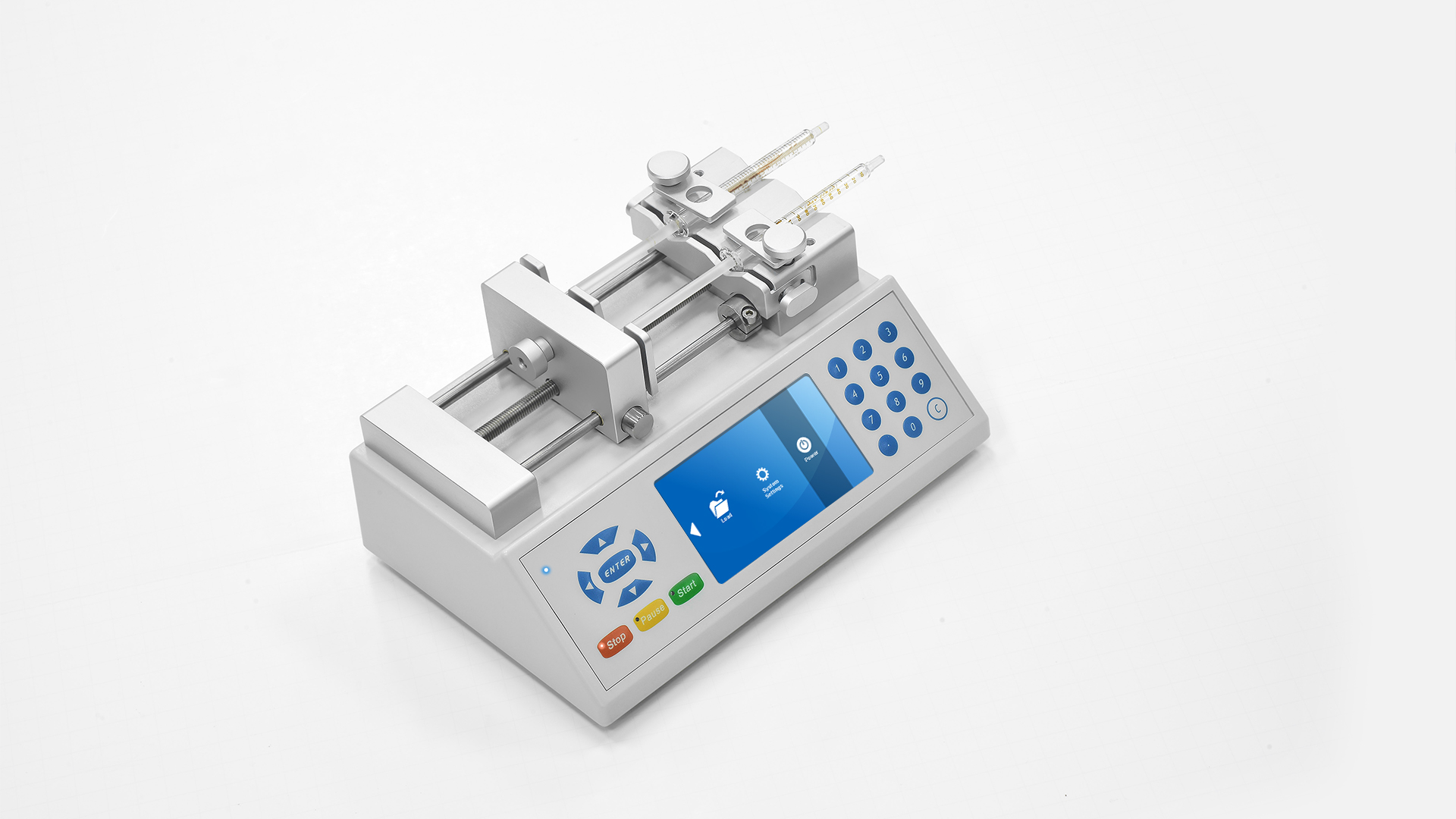

Fusion 200 Two-Channel Syringe Pump

Upgraded to Fusion 200-X

The Fusion 200 is a modular two-channel infusion and withdrawal syringe pump. This popular two-channel syringe pump model has the following features: two syringes to infuse and withdraw simultaneously at pulseless, reproducible rates; a programmable multi-step mode that allows users to program complex multi-step flow rates; computer control with Lab view and other programs; an add-on 10-syringe push and pull rack to increase the syringe number to ten. Fusion 200 dual syringe infusion and withdrawal pump have been proved to provide pulseless, reproducible flow rates for a wide range of analytical techniques and applications in chemical, pharma, and biotech R&D.
See the Fusion 200-X for the upgrade dual-channel infusing and withdraw syringe pump option.

  • Holds syringes from 0.5µL to 60mL
  • Modular Infuse/Withdraw and Optional 10 syringe rack available
  • Rates from 0.0001 µL/min to 84.7 mL/min
  • Control via touchscreen, USB, RS232, TTL
  • Free Programmable Mode Included
  • 2-Year Limited* Warranty
  • Available Accessories
ModeInfuse/Withdraw
Accuracy± < 0.35%
Reproducibility± < 0.05%
Syringe Size (Min/Max)0.5µL to 60mL
Syringe Flow RatesSee Syringe Library for Min & Max Flow Rates
Minimum Flow Rate0.0001 µL/min (with 0.5µL syringe)
Maximum Flow Rate85 mL/min(with 50mL syringe)
Linear Force50lb (23kg)
Display4.3 inch LCD Touch Screen
ConnectivityUSB-B, RS232 and TTL Ports
System Dimensions9.5 x 6.8 x 4.7 inches (24 x 17 x 12 cm)
Power110/220 VAC
Weight7lbs (3kg)
Motor Drive0.9˚ Stepper Motor with Micro-stepping
Step Resolution0.046 µm/step
Operating Temperature4°C to 40°C (40°F to 104°F)
Storage Temperature-10°C to 70°C (14°F to 158°F)
Humidity20% to 80% RH, non-condensing
Installation CategoryII
Regulatory ComplianceCE, RoHS, REACH, FCC
Chemyx Syringe Pump
Microfluidic Flow Performance

The Fusion 200 two-channel syringe pumps infuse and withdraw solutions at pulseless, reproducible flow rates via a state-of-the-art micro stepper motor. With this dual syringe pump, you can easily and effortlessly deliver accurate and precise amounts of fluids for a multitude of applications like microfluidics dosing, injections into a reactor, mass-spec calibration, and neuro-drug delivery to animals.

  • Dual syringe pump supports a variety of precision microflow applications
  • Easy to operate touchscreen
  • Compatible with lab automation programs LabVIEW and MATLAB
  • Free LabVIEW and MATLAB Drivers

Chemyx Syringe Pump
Precision Machined Components

Chemyx dual syringe pumps are precision machined with metal components for a level of accuracy needed for microflow applications and for both chemical resistance and mechanical wear. Chemyx high-precision double syringe pumps last for years with an equipment value that is hard to match.

  • Machined metal design
  • Chemical resistant polypropylene coated screen
  • 2-year warranty

Clear & Intuitive Programmable Touch Interface

Intuitive, user-friendly software on this dual syringe pump lets users program and customize flow profiles and offers a robust database of brand-name syringes. Remote computer control capabilities are available through USB, TTL, and RS232 communication connections. Fusion two-channel syringe pumps also are supported by LabVIEW / MATLAB drivers and are automation ready for coding software like C++, C#, and Objective-C via simple ASCII commands.

  • Programmable variable rate profiles via keypad
  • Computer control via USB, RS232, TTL
  • LabVIEW and MATLAB drivers available

Modular 10 Syringe Rack Attachments

The Fusion Plus modular dual syringe pump is ideal for laboratories that have changing experimental requirements. Infuse and withdraw functions along with a 10-Syringe Holder Rack option allows the Fusion Plus dual channel syringe pump to adapt to a wide variety of changing lab applications.

Product Information

image Specifications Sheet
image Product Manual

Support Articles

How to Program Complex Flow Profiles

The Fusion 100 (infuse only) and Fusion 200 have infuse and withdraw capabilities that allow pumps to achieve basic and multi-step flow profiles. For example, below are some common flow profiles and set-ups on Chemyx syringe pumps. Example 1: ‘Start/Stop’ Flow Profile For the start/stop flow profile, the pump starts at a specific flow rate […]

Common Reasons For Syringe Leakage

The components of even the most durable syringe will eventually fail. The most common symptom of failure may be leakage of your solvent from the syringe. The following are some common reasons for syringe leakage, as well as our recommended solutions. 1. Tip Connection The most common symptom of failure may be leakage of your […]

How Do Chemyx Syringe Pumps Work?

A syringe pump is a small, positive-displacement pump used to gradually transfer precise volumes of fluid. Chemyx Fusion Series syringe pumps are all driven via a stepper motor. A lead screw, threaded through a pusher block, precisely turns the pump’s stepper motor. This causes the pusher block to move. The fluid ejects at an accurate […]
